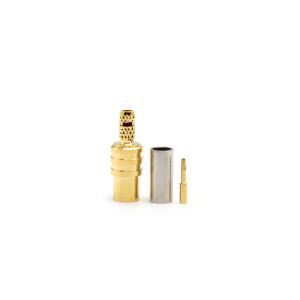

    RF Connector MCX Female for RG316 Cable

    Ask Lasest Price
    Brand Name : Terui
    Model Number : MCX-K3C
    Certification : RoHS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    RF Connector MCX Female for RG316 Cable

    RF Connector MCX Female for RG316 Cable

    Type MCX is one kind of RF coaxial conectors with miniature snap-on coupling mechanism, which has the characteristics of light weight,

    small size, concise structure and easy to use, they are sure to fit most applications where space, weight, performance and easey to assembly

    are required in RF circuits of fixed communication instruments.


    Product Details


    MCX RF Connectors Female for RG316 Cable

    Teruilai P/N: MCX-K3C

    RoHS Certificate: Compliant

    Electrical dataRequirments
    Frequency range0-6GHZ(50Ω)
    Dieletric withstanding voltage750V
    Characteristic impedance50Ω
    Insulation Resistance≧1000MΩ
    Contact Resistance
    .Center conductor≦5mΩ
    .Outer conductor≦2.5mΩ
    VSWR≦1.3
    Mechanical dataRequirments
    Durability (matings)≧500
    Environmental dataRequirments
    Temperature range-45℃ to+125℃
    Material dataRequirments
    Connector partsMaterialPlating
    BodyBrassGold
    InsulatorsTeflon
    Contact springBeryllium copperGold
    Pin contactsBrassGold
