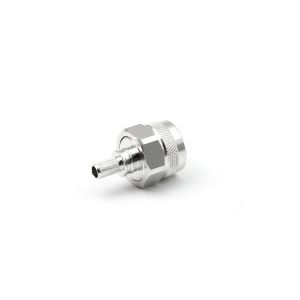

    N male connector For LMR240 cable

    Ask Lasest Price
    Brand Name : Terui
    Model Number : N-J240Y-2C
    Certification : RoHS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    N male connector For LMR240 cable

    N male connector For LMR240 cable

    TYPE N are very popular screw-coupling middle-power coaxial connectors, which has the excellent peformance of greet vbration-proof,high reliability, superior electrical and mechanical properties, They are widely used for communication applications where tration resistance and harsh environment is required. The interface mating dimensions and technical characterstics are according to the standard MIL-C-39012 IEC60169-16AND CECC22210

    Product Details


    N male connector For LMR240 cable

    Teruilai P/N: N-J240Y-2C

    RoHS Certificate: Compliant

    Electrical dataRequirments
    Frequency range0-11GHZ
    Dieletric withstanding voltage1500V
    Characteristic impedance50Ω
    Insulation Resistance≧5000MΩ
    VSWR1.30:1
    Mechanical dataRequirments
    Durability (matings)≧500
    Environmental dataRequirments
    Temperature range-40℃ ~+85℃
    Material dataRequirments
    Connector partsMaterialPlating
    Pin contactsBrassGold
    BodyBrassSilver plated
    InsulatorsTeflon
