    1.85mm Female Connector

    Ask Lasest Price
    Brand Name : Terui
    Model Number : 1.85-KHT0.3
    Certification : RoHS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

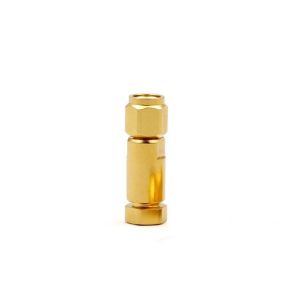

    1.85mm Female Connector

    1.85mm Female Connector

    1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.
    They are widely used in testing system, aerospace field, microwave weapon systems.


    Product Details


    Teruilai P/N: 1.85-KHT0.3

    RoHS Certificate: Compliant


    Electrical dataRequirments
    Frequency rangeDC-65GHZ
    Dieletric withstanding voltage≧750V
    Characteristic impedance50Ω
    Insulation Resistance≧5000MΩ
    VSWR≤1.20
    Mechanical dataRequirments
    Durability (matings)≧500
    Environmental dataRequirments
    Temperature range-45℃ to +125℃
    Material dataRequirments
    Connector partsMaterialPlating
    BodyStainless steelPassivated
    Pin contactsBeryllium-CopperGold
    InsulatorsPEI

    Quality 1.85mm Female Connector for sale
